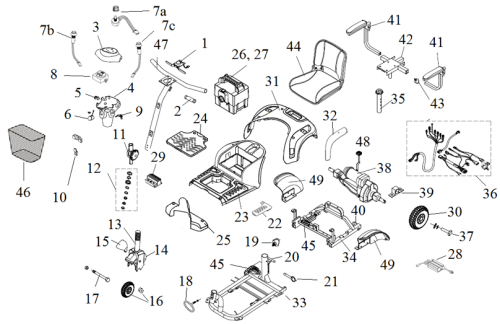

Drive Medical Phoenix HD 3 Parts Diagram
Pos.
MPN
Details
1
S31009

Monster Scooter Parts

S31009 - Throttle Potentiometer Assembly for the Drive Daytona, Phantom, and Phoenix Mobility Scooters

$125.88
View details
2
C20-007-0020

TRP Rubber for the Drive Phoenix HD 3 (C20-007-0020)

---
2
S31003
Handlebar Grips for the Drive Medical Daytona, Gladiator GT, Odyssey, and Phantom (Set of 2) – a pair of black foam handlebar grips designed for mobility scooters, shown close-up.

Monster Scooter Parts

Handlebar Grips for the Drive Medical Daytona, Gladiator GT, Odyssey and Phantom (Set of 2)

$8.99
View details
3
S31004GT
Upper Tiller Cover for the Drive Medical Phoenix Series Scooters, featuring a black plastic shroud with a blue circular design and white text, housing and protecting internal electronics.

Monster Scooter Parts

S31004GT - Upper Tiller Cover for the Drive Medical Phoenix Series Scooters

$112.15
View details
4
S31209BK
Lower Tiller Cover for the Drive Medical Phoenix Series Scooters, a black plastic object with multiple holes designed to protect essential components from moisture, dirt, and food.

Monster Scooter Parts

S31209BK - Lower Tiller Cover for the Drive Medical Phoenix Series Scooters

$128.90
View details
5
S31006
Close-up of the Key Switch for the Drive Daytona 3, Daytona 4, Phantom, Phoenix 3, & Phoenix 4 scooters, featuring a keyhole and attached red and blue electrical cables.

Monster Scooter Parts

S31006 - Key Switch for the Drive Daytona 3, Daytona 4, Phantom, Phoenix 3, & Phoenix 4

$36.06
View details
5
S3KEY
Key for Drive Daytona, Daytona GT, Mini Phantom, Phantom, Phoenix, Phoenix HD, and Stingray mobility scooters, shown as a close-up of a key chain with a keyring and a logo.

Monster Scooter Parts

S3KEY - Key for Drive Daytona, Daytona GT, Mini Phantom, Phantom, Phoenix, Phoenix HD, and Stingray

$10.99
View details
6
S31022
Headlight Assembly for the Drive Medical Daytona and Phoenix Scooters, shown in close-up, highlighting the detailed structure of the bicycle light component essential for mobility scooter safety.

Monster Scooter Parts

S31022 - Headlight Assembly for the Drive Medical Daytona and Phoenix Scooters

$51.92
View details
7
LRM412103-11

Monster Scooter Parts

Speed Dial Knob for the Drive Medical Ventura, ActiveCare Medical Spitfire EX 1420, ActiveCare Medical Spitfire 1410, and Drive Medical Spitfire Scout (SFSCOUT3/SFSCOUT4) (LRM412103-11)

$33.30
View details
8
S31208B

Monster Scooter Parts

S31208B - LED Battery Gauge for the Drive Medical Phoenix 3 & Phoenix 4

$47.29
View details
9
S31147
Charging Port for the Drive Phantom, Falcon, Phoenix, & Ventura; close-up of a black device with a female XLR connector for mounting on mobility scooters.

Monster Scooter Parts

S31147 - Charging Port for the Drive Phantom, Falcon, Phoenix, & Ventura

$71.93
View details
10
BC35051
Basket Hook Set for the Drive Bobcat, Phoenix, Scout DST, & Spitfire Scout Series Scooters, featuring black plastic and metal brackets with multiple holes for mounting a basket on scooter tillers.

Monster Scooter Parts

BC35051 - Basket Hook Set for the Drive Bobcat, Phoenix, Scout DST, & Spitfire Scout Series Scooters

$24.99
View details
11
S31028

Monster Scooter Parts

S31028 - Tiller Adjustment Knob for the Drive Medical Mobility Scooters

$35.52
View details
11
S350109
Tiller Swivel Assembly for Drive Medical Phoenix Series Scooters, featuring a black metal object with a round handle and a close-up of a black rubber wheel for comfortable adjustment.

Drive Medical

S350109 - Tiller Swivel Assembly for the Drive Medical Phoenix Series Scooters

$158.57
View details
12
S31021

Monster Scooter Parts

S31021 - Bearing Ball Holder Assembly for Drive Medical Mobility Scooters

$30.79
View details
13
S31036-3HD

Drive Medical

S31036-3HD - Fork for the Drive Phoenix HD 3

$104.75
View details
14
S350127
Front Fender & Fork Cover for the Drive Medical Phoenix 3 & Phoenix HD3 Scooter, featuring a sleek design that protects the front fork and bearings from dust, rust, mud, and debris.

Drive Medical

S350127 - Front Fender & Fork Cover for the Drive Medical Phoenix 3 & Phoenix HD3 Scooter

$33.70
View details
15
S31012B

Blue Decoration for the Drive Phoenix HD 3 (S31012B)

---
15
S31012R

Red Decoration for the Drive Phoenix HD 3 (S31012R)

---
16
9503H79021

Monster Scooter Parts

9503H79021 - Front Wheel Bearing for the Drive Medical Adult Knee Walker (796)

$32.99
View details
16
S31142-3HD

Monster Scooter Parts

S31142-3HD - 9"x3" Flat-Free Front Wheel Assembly for the Drive Phoenix HD 3-Wheel Mobility Scooter

$95.69
View details
17
S31141-3

Front Axle for the Drive Phoenix HD 3 (S31141-3)

---
18
S31011
Towing Handle for the Drive Phoenix 3 & Phoenix HD3: A black oval handle with a bolt, designed for easy installation on scooters, providing a convenient towing and lifting point.

Monster Scooter Parts

S31011 - Towing Handle for the Drive Phoenix 3 & Phoenix HD3

$29.87
View details
19
S350169715

Drive Medical

S350169715 - Seat Post Knob for the Drive Phoenix HD 3 and Drive Phoenix HD 4

$32.99
View details
20
S350169716

Drive Medical

S350169716 - Lock Frame Handle for the Drive Phoenix HD 3 and Drive Phoenix HD 4

$42.30
View details
21
S350169717
1/4 Stainless Steel Wire Lock Seat Post Pin for Drive Medical Falcon, Phantom, & Phoenix Mobility Scooters, featuring a bright metal pin with a wire retainer and round locking mechanism, close-up view.

Drive Medical

S350169717 - 1/4" Stainless Steel Wire Lock Seat Post Pin for Drive Medical Falcon, Phantom, & Phoenix Mobility Scooters

$17.99
View details
23
S350110

Drive Medical

S350110 - Main Shroud for the Drive Phoenix HD 3 and Drive Phoenix HD 4

$151.74
View details
24
S350113
14x3 (3.00-8) Tire for the Drive Cobra GT4 & Panther Mobility Scooters, featuring a detailed tread pattern, shown in a close-up for both front and back rims.

Qind

14"x3" (3.00-8) Tire for the Drive Cobra GT4 & Panther Mobility Scooters

From $68.94
View details
25
C08-035-01500
Extended Foot Shroud for the Drive Medical Phoenix HD, showcasing a black plastic object with a zigzag pattern and curved edge, designed for scooter or power chair compatibility.

Monster Scooter Parts

C08-035-01500 - Extended Foot Shroud for the Drive Medical Phoenix HD (PHOENIXHD3/PHOENIXHD4)

$85.05
View details
25
S350114

Drive Medical

S350114 - Foot Shroud for the Drive Phoenix HD 3

$25.94
View details
26
S350169706-HD
Battery Box Assembly for the Drive Phoenix HD3 & HD4, featuring a black box with a lock, designed for easy removal and transport.

Drive Medical

S350169706-HD - Battery Box Assembly for the Drive Phoenix HD3 & HD4

From $128.12 Free Shipping
View details
26
S350169706-HDCP

Monster Scooter Parts

S350169706-HDCP - Battery Box Charging Port for the Drive Phoenix HD (PHOENIXHD3/PHOENIXHD4)

$46.19
View details
26
S350169707
Battery Box Assembly for the Drive Geo Portable, Mini Phantom, Phoenix 3, and Phoenix 4 Mobility Scooters, featuring a black plastic box with a handle and visible plug.

Monster Scooter Parts

Battery Box Assembly for the Drive Geo Portable (S3500), Mini Phantom (S35001692/S35002692), Phoenix 3 (S35010), and Phoenix 4 (S35015) Mobility Scooters

From $130.48 Free Shipping
View details
27
LRM412123
Half U1 18 Ah (17 Ah - 20 Ah Replacement) 12 Volt AGM Scooter Battery with Post Terminals, featuring black casing and visible white text detailing specifications, ideal for electric scooters and mobility devices.

Universal Power Group

Half U1 18 Ah (17 Ah - 20 Ah Replacement) 12 Volt AGM Scooter Battery with Post Terminals

$82.49 Free Shipping
View details
28
LRM302111
24 Volt 2.0 Amp XLR 24BC2000T-4 Battery Charger with a black power supply, connected wires, and yellow triangle warning sign. Features XLR connector and 3-prong adapter plug.

Universal Power Group

S31055 - 24 Volt 2.0 Amp XLR 24BC2000T-4 Battery Charger

$59.99
View details
29
S31008GT-HD
Close-up of the Controller for the Drive Medical Phoenix HD (PHOENIXHD3/PHOENIXHD4) showing buttons and electronic components.

Monster Scooter Parts

S31008GT-HD - Controller for the Drive Medical Phoenix HD (PHOENIXHD3/PHOENIXHD4)

$401.39
View details
30
S31132B-HD
9x3 Flat-Free Rear Wheel Assembly for the Drive Phoenix HD Mobility Scooter, featuring a black tire with a silver rim, ideal for both 3-wheel and 4-wheel versions.

Monster Scooter Parts

S31132B-HD - 9"x3" Flat-Free Rear Wheel Assembly for the Drive Phoenix HD Mobility Scooter

$135.82
View details
31
S350111
Rear Shroud Assembly for Drive Medical Phoenix 4 (S35015) and Phoenix HD (PHOENIXHD3/PHOENIXHD4), featuring a black plastic surface with white text and a white label.

Monster Scooter Parts

S350111 - Rear Shroud Assembly for the Drive Medical Phoenix 4 and Phoenix HD

$241.56
View details
32
S35011B-L

Drive Medical

S35011B-L - Blue Left Rear Decoration for the Drive Phoenix HD 3 and Drive Phoenix HD 4

$35.52
View details
32
S35011B-R

Drive Medical

S35011B-R - Blue Right Rear Decoration for the Drive Phoenix HD 3 and Drive Phoenix HD 4

$35.52
View details
32
S35011R-L

Drive Medical

S35011R-L - Red Left Rear Decoration for the Drive Phoenix HD 3 and Drive Phoenix HD 4

$35.52
View details
32
S35011R-R

Drive Medical

S35011R-R - Red Right Rear Decoration for the Drive Phoenix HD 3 and Drive Phoenix HD 4

$32.99
View details
33
C01-035-00800

Drive Medical

C01-035-00800 - Front Frame for the Drive Phoenix HD 3

$345.68
View details
33
S31135
Front Frame for the Drive Medical Phoenix 3 & Phoenix HD3 Scooter: Close-up of the black, sturdy welded steel tubing chassis, essential for connecting all parts of the mobility scooter.

Drive Medical

S31135 - Front Frame for the Drive Medical Phoenix 3 & Phoenix HD3 Scooter

$229.00
View details
34
C01-035-00900

Drive Medical

C01-035-00900 - Rear Frame for the Drive Phoenix HD 3

$211.39
View details
34
S31130-4HD

Drive Medical

S31130-4HD - Rear Frame for the Drive Phoenix HD 3 and Drive Phoenix HD 4

$212.61
View details
35
S31049
Seat Post for the Drive Medical Falcon, Phantom, and Phoenix Series Scooters, featuring a polished chrome finish with three adjustment holes, 1-1/4 diameter, and 13-1/4 length.

Monster Scooter Parts

S31049 - Seat Post for the Drive Medical Falcon, Phantom, and Phoenix Series Scooters

$98.20
View details
36
S31048-HD

Monster Scooter Parts

S31048-HD - Wire Harness for the Drive Medical Phoenix HD (PHOENIXHD3/PHOENIXHD4)

$156.02
View details
38
29002W7011
Axle Key for Drive Medical Ventura, Cobra GT4, Phoenix HD, Panther, and ActiveCare Medical Prowler 3410 Mobility Scooters. The close-up shows a precisely machined metal rectangular key essential for securing drive wheels.

Drive Medical

29002W7011 - Axle Key for Drive Medical Ventura, Cobra GT4, Phoenix HD, Panther, & ActiveCare Medical Prowler 3410, Mobility Scooters

$28.59
View details
38
S31031-HD
Motor & Brake Assembly for the Drive Medical Phoenix HD 3 & Phoenix HD 4: Close-up of a black and silver electric motor with attached wires and a barcode label.

Drive Medical

S31031-HD - Motor & Brake Assembly for the Drive Medical Phoenix HD 3 & Phoenix HD 4

$562.74
View details
38
S31125HD

Drive Medical

S31125HD - Motor & Transaxle Assembly for the Drive Phoenix HD 3 and Drive Phoenix HD 4

$1,179.94
View details
39
S350112BKT-HD

Drive Medical

S350112BKT-HD - Transaxle Bracket for the Drive Phoenix HD 3 and Drive Phoenix HD 4

$40.22
View details
40
S31026
Anti-Tip Wheel for the Drive Bobcat, Phantom, Phoenix, Scout DST, & Spitfire Scout Mobility Scooters, showing a close-up of a black wheel with a central hole designed for stability.

Drive Medical

S31026 Anti-Tip Wheel for the Drive Bobcat, Phantom, Phoenix, Scout DST, & Spitfire Scout Mobility Scooters

$58.94
View details
42
S31039-HD

Drive Medical

S31039-HD - Seat Plate for the Drive Medical Phoenix HD (PHOENIXHD3/PHOENIXHD4)

$175.99
View details
43
S31052
Armrest Adjustment Knob for the ActiveCare/Drive Medical Spitfire Series, featuring a black plastic knob with a screw, designed for precise armrest positioning on mobility scooters.

Monster Scooter Parts

Armrest Adjustment Knob for the ActiveCare/Drive Medical Spitfire Series (S31052)

$22.44
View details
44
S35045BC-HD

Back Cover for the Drive Phoenix HD 3 and Drive Phoenix HD 4 (S35045BC-HD)

---
44
S35045-HD
17 Seat Assembly for the Drive Phoenix HD, featuring two-tone black and grey upholstery, designed with armrests and compatible with 3-wheel and 4-wheel Phoenix HD scooters.

Drive Medical

S35045-HD - 17" Seat Assembly for the Drive Phoenix HD

$737.54
View details
44
S35045SC-HD
17.5 Black Vinyl Seat Base Cover compatible with Drive Medical Phoenix HD Series (PHOENIXHD3/PHOENIXHD4), featuring a sleek design ideal for scooter or power chair maintenance.

Monster Scooter Parts

17.5" Black Vinyl Seat Base Cover for the Drive Medical Phoenix HD Series (PHOENIXHD3/PHOENIXHD4) (S35045SC-HD)

$122.74
View details
45
S31056

Monster Scooter Parts

S31056 - Front Frame Contact for the Drive Medical Phoenix 3, Phoenix 4, Phantom, and Phoenix HD

$40.82
View details
45
S31057

Monster Scooter Parts

S31057 - Rear Frame Contact for the Drive Medical Phoenix 3, Phoenix 4, Phantom, and Phoenix HD

$39.99
View details
46
S35003-PL
Front Plastic Basket for the Drive Panther & Ventura Scooters, featuring a black, hole-patterned design, perfect for mounting on the scooter's front tiller. Lightweight and durable for enhanced convenience.

Monster Scooter Parts

S35003-PL - Front Plastic Basket for the Drive Panther & Ventura Scooters

$116.95
View details
47
C02-034-00100

Drive Medical

C02-034-00100 - T-Type Handlebar Assembly for the Drive Phoenix HD 3

$89.33
View details
47
S31002
Tiller for the Drive Medical Phoenix 3, Phoenix 4, & Phoenix HD mobility scooters featuring black handles and a mounting area for the control console. Cushiony foam hand grips included; tiller knuckle sold separately.

Drive Medical

S31002 - Tiller for the Drive Medical Phoenix 3, Phoenix 4, & Phoenix HD

$64.89
View details
48
S31031K

Drive Medical

S31031K - Free Wheel Knob for the Drive Phoenix HD 3 and Drive Phoenix HD 4

$32.99
View details
49
S35048MFL

Left Mud Flap for the Drive Phoenix HD 3 and Drive Phoenix HD 4 (S35048MFL)

---
49
S35048MFR

Right Mud Flap for the Drive Phoenix HD 3 and Drive Phoenix HD 4 (S35048MFR)

---
7a
S31001

Drive Medical

S31001 - Speed Dial Assembly for the Drive Phoenix HD 3, Drive Phoenix HD 4, Drive Ventura 3, Drive Ventura 3 DLX, Drive Ventura 4, and Drive Ventura 4 DLX

$68.19
View details
7b
S31012
Close-up of the Horn Button and Wiring Harness for the Drive Daytona, Phantom, and Ventura Mobility Scooters, featuring a detailed view of the wire and yellow electrical plug.

Monster Scooter Parts

S31012 - Horn Button and Wiring Harness for the Drive Daytona, Phantom, and Ventura Mobility Scooters

$35.19
View details
7c
S31122

Drive Medical

S31122 - Headlight Switch for the Drive Phoenix HD 3, Drive Phoenix HD 4, Drive Ventura 3, Drive Ventura 3 DLX, Drive Ventura 4, and Drive Ventura 4 DLX

$35.19
View details
---
C11-076-00100

Monster Scooter Parts

C11-076-00100 - Battery Indicator for the Drive Medical Scout DST 4

$52.79
View details
---
C20-007-00200

Monster Scooter Parts

Hand Grip Set for the Drive Medical Bobcat X3, Drive Medical Bobcat X4, Drive Medical Phoenix HD (PHOENIXHD3/PHOENIXHD4), and Drive Medical Maverick (C20-007-00200)

$32.99
View details
---
S31060
Battery Plate Contacts for Drive Medical Phoenix scooters, featuring a metal piece with a screw and a hole, essential for maintaining scooter functionality.

Monster Scooter Parts

S31060 - Battery Plate Contacts for the Drive Medical Phoenix 3, Phoenix 4, and Phoenix HD

$35.59
View details
---
S350169706-HDCP

Monster Scooter Parts

S350169706-HDCP - Battery Box Charging Port for the Drive Phoenix HD (PHOENIXHD3/PHOENIXHD4)

$46.19
View details
---
VENT-29

Monster Scooter Parts

VENT-29 - Left Arm Assembly for the Drive Ventura with Folding Seat

$105.80
View details
---
VENT-30

Monster Scooter Parts

VENT-30 - Right Arm Assembly for the Drive Ventura with Folding Seat

$105.80
View details
---
VENT-31

Monster Scooter Parts

VENT-31 - Left Armrest Pad for the Drive Medical Phoenix HD

$55.99
View details
---
VENT-32

Monster Scooter Parts

VENT-32 - Right Armrest Pad for the Drive Medical Phoenix HD

$55.20
View details
Monster Scooter Parts BBB Business Review
