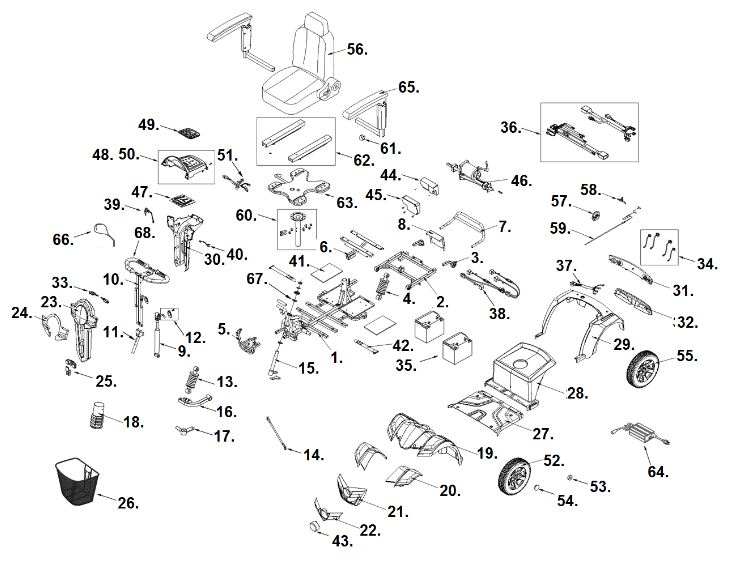

Drive Medical Panther Parts Diagram


Pos.
MPN
Details
1
C01-077-00101

Drive Medical

C01-077-00101 - Front Frame for the Drive Panther

$637.39
View details
2
C01-077-00200

Drive Medical

C01-077-00200 - Rear Frame for the Drive Panther

$243.87
View details
3
C28-032-00100

Drive Medical

C28-032-00100 - Anti-Tip Wheel for the Drive Panther

$30.89
View details
4
C04-040-00100

Drive Medical

C04-040-00100 - Rear Shock Absorber for the Drive Panther

$52.21
View details
5
C01-077-00400

Drive Medical

C01-077-00400 - Bumper for the Drive Panther

$78.48
View details
6
C01-077-00500

Drive Medical

C01-077-00500 - Rear Shroud Bracket for the Drive Panther

$83.18
View details
7
C01-077-00600

Drive Medical

C01-077-00600 - Rear Bumper for the Drive Panther

$71.93
View details
8
C10-077-00100

Drive Medical

C10-077-00100 - Controller Bracket for the Drive Panther

$58.47
View details
9
C02-029-00200
View details
10
C02-077-00200

Drive Medical

C02-077-00200 - Upper Tiller for the Drive Panther

$229.68
View details
11
C02-036-00400

Drive Medical

C02-036-00400 - Lower Tiller for the Drive Panther

$66.18
View details
12
PANTHER-01

Drive Medical

PANTHER-01 - Tiller Release Handle for the Drive Panther

$35.19
View details
13
C03-002-00300

Drive Medical

C03-002-00300 - Front Shock Absorber for the Drive Panther

$57.25
View details
14
PANTHER-02

Drive Medical

PANTHER-02 - Tie Rod for the Drive Panther

$63.45
View details
15
PANTHER-03

Drive Medical

PANTHER-03 - Steering Fork for the Drive Panther

$64.48
View details
16
C03-077-00201

Drive Medical

C03-077-00201 - Left Control Arm for the Drive Panther

$89.58
View details
16
C03-077-00301

Drive Medical

C03-077-00301 - Right Control Arm for the Drive Panther

$89.58
View details
17
C03-001-00107

Drive Medical

C03-001-00107 - Steering Knuckle for the Drive Panther

$72.40
View details
18
C25-045-00100

Drive Medical

C25-045-00100 - Tiller Boot for the Drive Panther

$43.32
View details
19
C08-077-00100

Drive Medical

C08-077-00100 - Front Shroud for the Drive Panther

$239.49
View details
20
PANTHER-04

Drive Medical

PANTHER-04 - Bed Front Shroud Decoration for the Drive Panther

$204.98
View details
20
PANTHER-05

Drive Medical

PANTHER-05 - Blue Front Shroud Decoration for the Drive Panther

$191.27
View details
21
C08-077-00400

Drive Medical

C08-077-00400 - Front Bumper Shroud for the Drive Panther

$92.25
View details
22
C08-077-00518

Monster Scooter Parts

C08-077-00518 - Red Front Bumper Decoration for the Drive Panther

$91.29
View details
22
C08-077-00551

Drive Medical

C08-077-00551 - Blue Front Bumper Decoration for the Drive Panther

$84.83
View details
23
C08-077-00618

Drive Medical

C08-077-00618 - Red Front Tiller Cover for the Drive Panther

$225.63
View details
23
C08-077-00651

Drive Medical

C08-077-00651 - Blue Front Tiller Cover for the Drive Panther

$194.01
View details
24
C08-077-00700

Drive Medical

C08-077-00700 - Front Tiller Decoration for the Drive Panther

$55.15
View details
25
BC35051
View details
26
C23-051-00200

Basket for the Drive Panther (C23-051-00200)

---
26
S35003-PL

Monster Scooter Parts

S35003-PL - Front Plastic Basket for the Drive Panther & Ventura Scooters

$116.95
View details
27
C08-077-01000

Drive Medical

C08-077-01000 - Footrest Shroud for the Drive Panther

$124.68
View details
28
C08-077-01100

Drive Medical

C08-077-01100 - Battery Shroud for the Drive Panther

$204.47
View details
29
C08-077-01218

Drive Medical

C08-077-01218 - Red Rear Shroud for the Drive Panther

$302.76
View details
29
C08-077-01251

Drive Medical

C08-077-01251 - Blue Rear Shroud for the Drive Panther

$287.45
View details
30
C08-077-00900

Drive Medical

C08-077-00900 - Rear Tiller Shroud for the Drive Panther

$122.11
View details
31
C08-077-01400

Drive Medical

C08-077-01400 - Light Shroud Decoration for the Drive Panther

$69.68
View details
32
C08-077-01300

Drive Medical

C08-077-01300 - Light Shroud for the Drive Panther

$49.53
View details
33
C15-062-00401

Drive Medical

C15-062-00401 - Front Right Turn Signal Light for the Drive Panther

$87.48
View details
33
C15-062-00801

Drive Medical

C15-062-00801 - Front Left Turn Signal Light for the Drive Panther

$87.48
View details
34
C14-062-00600

Drive Medical

C14-062-00600 - Rear Right Turn Signal Light for the Drive Panther

$73.90
View details
34
C14-062-01000

Drive Medical

C14-062-01000 - Rear Left Turn Signal Light for the Drive Panther

$73.90
View details
34
C14-077-00100

Drive Medical

C14-077-00100 - Right Rear Stop Signal for the Drive Panther

$77.00
View details
34
C14-077-00200

Drive Medical

C14-077-00200 - Left Rear Stop Signal for the Drive Panther

$77.00
View details
35
LRB402308
View details
35
LRC402407

Universal Power Group

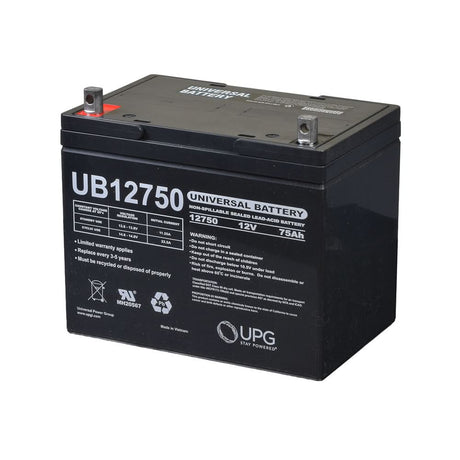

Group 24 (75 Ah) 12 Volt UB12750 AGM Scooter Battery

$234.99 Free Shipping
View details
36
C18-077-00100

Drive Medical

C18-077-00100 - Wire Harness for the Drive Panther

$267.96
View details
37
C18-062-00400

Drive Medical

C18-062-00400 - Rear Light Harness for the Drive Panther

$30.89
View details
38
C17-029-00403

Drive Medical

C17-029-00403 - Negative Battery Harness for the Drive Panther

$93.49
View details
38
C17-029-00303

Drive Medical

C17-029-00303 - Positive Battery Harness for the Drive Panther

$93.49
View details
38
6AYK5

Drive Medical

6AYK5 - 125 Amp Fuse for the Drive Panther

$62.75
View details
39
C18-001-01501
View details
39
C37-001-02300

Monster Scooter Parts

S4KEY - Key for the Drive Cobra GT4, King Cobra, & Panther Mobility Scooters

$21.94
View details
40
C12-051-00200

Drive Medical

C12-051-00200 - Charger Port for the Drive Cobra GT4 and Drive Panther

$38.01
View details
41
C25-005-00100

Drive Medical

C25-005-00100 - Battery Pad for the Drive Panther

$30.89
View details
42
C31-029-00101
View details
43
C13-077-00100

Drive Medical

C13-077-00100 - Headlight for the Drive Panther

$162.60
View details
44
C10-077-00200

Monster Scooter Parts

C10-077-00200 - Control Module for the Drive Panther

$434.74
View details
45
C26-051-00501
View details
46
C09-077-00100

Drive Medical

C09-077-00100 - Motor, Brake, & Transaxle Assembly for the Drive Panther

$1,474.22
View details
46
C09-076-01200

Monster Scooter Parts

Transaxle Assembly for the Drive Medical Panther (C09-076-01200)

$403.16
View details
46
29002W7011
46
C09-077-00300

Drive Medical

C09-077-00300 - Motor for the Drive Panther

$568.16
View details
46
C09-029-07900

Monster Scooter Parts

Motor Brushes for the Drive Medical Panther (C09-029-07900)

$52.75
View details
46
C09-029-04500

Drive Medical

C09-029-04500 - Motor Brush Covers for the Drive Panther

$48.44
View details
46
C09-076-00700

Monster Scooter Parts

C09-076-00700 - Electromagnetic Brake for the Drive Panther

$239.58
View details
46
C09-077-00401

Drive Medical

C09-077-00401 - Free Wheel Lever for the Drive Panther

$48.15
View details
47
C10-051-00507

Monster Scooter Parts

C10-051-00507 - Tiller PC Board for the Drive Cobra GT4

$323.04
View details
48
C08-077-00865

Drive Medical

C08-077-00865 - Upper Tiller Cover for the Drive Panther

$121.98
View details
49
C10-051-00601

Monster Scooter Parts

C10-051-00601 - Overlay for the Drive Medical Panther

$58.29
View details
50
C27-077-00100

Drive Medical

C27-077-00100 - Battery Indicator for the Drive Panther

$37.52
View details
51
S12-051-00100
View details
52
S05-051-00400

Monster Scooter Parts

Front Wheel Assembly for the Drive Medical Panther (S05-051-00400)

$314.48
View details
52
C06-051-00100

Drive Medical

C06-051-00100 - 3.00-8 Tire for the Drive Cobra GT4 and Drive Panther

$68.94
View details
52
C06-051-00201

Monster Scooter Parts

8" Inner Tube with 90 Degree Valve Stem for the Drive Cobra GT4

$14.99
View details
52
S350112AN

Monster Scooter Parts

S350112AN - Rear Axle Bolt with Washers for the Drive Medical Phoenix HD & Phantom

$30.79
View details
53
STDS2A5303

Monster Scooter Parts

STDS2A5303 - Front Wheel Bearing for the Drive Medical Cobra GT4

$35.19
View details
55
S06-051-00600

Monster Scooter Parts

Left Rear Wheel Assembly for the Drive Medical Panther (S06-051-00600)

$342.51
View details
55
S05-051-00500

Monster Scooter Parts

Right Rear Wheel Assembly for the Drive Medical Panther (S05-051-00500)

$266.53
View details
56
S07-062-00100

Drive Medical

S07-062-00100 - 20" Seat Assembly for the Drive Cobra GT4 and Drive Panther

$1,377.14
View details
56
S07-062-00200
56
C07-062-00400

Monster Scooter Parts

C07-062-00400 - Headrest for the Drive Cobra GT4 Scooter

$104.49
View details
57
PANTHER-08

Drive Medical

PANTHER-08 - Brake for the Drive Panther

$80.83
View details
58
PANTHER-09

Drive Medical

PANTHER-09 - Brake Lever for the Drive Panther

$44.64
View details
58
S35-077-00100

Drive Medical

S35-077-00100 - Right Hand Brake Kit for the Drive Panther

$45.42
View details
59
PANTHER-10

Drive Medical

PANTHER-10 - Brake Cable Assembly for the Drive Panther

$41.79
View details
60
PANTHER-11

Drive Medical

PANTHER-11 - Seat Post for the Drive Panther

$69.30
View details
61
S31052

Monster Scooter Parts

Armrest Adjustment Knob for the ActiveCare/Drive Medical Spitfire Series (S31052)

$22.44
View details
62
C07-016-00600

Drive Medical

C07-016-00600 - Seat Slides for the Drive Cobra GT4 and Drive Panther

$117.23
View details
63
C07-062-00202

Drive Medical

C07-062-00202 - Seat Plate for the Drive Cobra GT4 and Drive Panther

$229.04
View details
64
LRA402210

Universal Power Group

24 Volt 5.0 Amp XLR 24BC5000T-4 Battery Charger (CPC)

$89.99
View details
65
C07-061-01900

Monster Scooter Parts

Arm Pad for Cobra/King Cobra/Maverick/Panther (C07-061-01900)

$69.29
View details
65
C07-061-01700

Monster Scooter Parts

C07-061-01700 - Left Armrest Assembly for the Drive Medical Panther Scooter

$133.39
View details
65
C07-061-01800

Monster Scooter Parts

C07-061-01800 - Right Armrest Assembly for the Drive Medical Cobra GT4

$142.54
View details
66
VENT-53

Monster Scooter Parts

VENT-53 - Right Rear View Mirror for the Drive Ventura

$38.49
View details
66
VENT-54

Monster Scooter Parts

VENT-54 - Left Rear View Mirror for the Drive Ventura

$35.19
View details
67
S02-001-00601
View details
68
C02-062-00101

Drive Medical

C02-062-00101 - Handlebar for the Drive Cobra GT4 and Drive Panther

$96.38
View details
