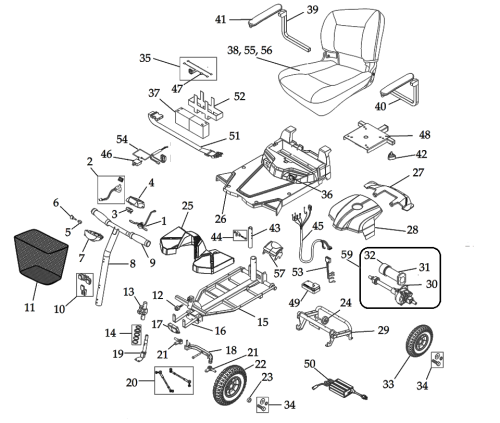

Drive Medical Bobcat X4 Parts Diagram


Pos.
MPN
Details
2
C12-071-00100
3
BC31208B
View details
4
C08-050-00301
View details
5
C18-071-00100
6
C18-071-00200
View details
7
C08-071-00100
View details
9
C20-007-00200
9
S31003
10
BC35051
12
C08-069-01000

Monster Scooter Parts

C08-069-01000 - Tiller Lock

$32.99
View details
13
CO2-069-00401

Tiller Swivel Assembly for the Drive Bobcat X4 (CO2-069-00401)

---
14
C29-016-00301
15
CO1-069-00103

Front Frame for the Drive Bobcat X4 (CO1-069-00103)

---
16
CO1-071-00100

Front Bumper Bracket for the Drive Bobcat X4 (CO1-071-00100)

---
17
C08-069-04800
View details
18
S03-069-00200
View details
20
BC350103
23
BC35046

Front Wheel Bearing for the Drive Bobcat X4 (BC35046)

---
24
S31026
25
C08-071-00600
View details
26
C08-071-00200
27
C08-071-00400
28
C08-071-00512
30
BC350112
View details
31
C09-071-00200
32
C09-071-00300
33
BC31132
34
S350016910
35
C18-071-00600
View details
36
C18-071-00800
37
BATT12V10AH

Universal Power Group

10 Ah 12 Volt UB12100-S AGM Scooter Battery

$36.99 Free Shipping
View details
38
S07-071-00100
39
C07-071-00400
40
C07-071-00300
41
C07-071-00500
42
S31052
43
C07-071-00100
View details
44
C07-071-00101
45
C18-071-00300
View details
47
BC40AFUSE
48
C07-050-00203-C
49
C10-034-00100
View details
51
C17-071-00200
52
C17-071-00100
53
C18-071-00400
54
C18-071-00500
55
C07-071-00600
56
C07-071-00700
57
C08-069-02900-C
58
S09-071-00100
---
BC20ACB
---
BC31141

Front Axle Assembly for the Drive Bobcat X3 and Drive Bobcat X4 (BC31141)

---
---
BC31142
---
C01-069-00103
View details
---
C01-070-00102
---
C01-070-00300
---
C01-071-00100
---
C02-069-00401
---
C02-071-00100
View details
---
C03-010-00305
View details
---
C03-069-00101
View details
---
C03-070-00100
---
C07-071-00301

Armrest Pad & Screws for the Drive Bobcat X3 and Drive Bobcat X4 (C07-071-00301)

---
---
C08-069-01001

Tiller Lock Set for the Drive Bobcat X3 and Drive Bobcat X4 (C08-069-01001)

---
---
C08-071-00300
---
C18-071-00601

Battery Harness & Jumper for the Drive Bobcat X3 and Drive Bobcat X4 (C18-071-00601)

---
---
LRM302111
View details
---
S07-071-00101

Back Upholstery for the Drive Bobcat X3 and Drive Bobcat X4 (S07-071-00101)

---
---
S07-071-00102

Seat Upholstery for the Drive Bobcat X3 and Drive Bobcat X4 (S07-071-00102)

---
---
S35003-P
